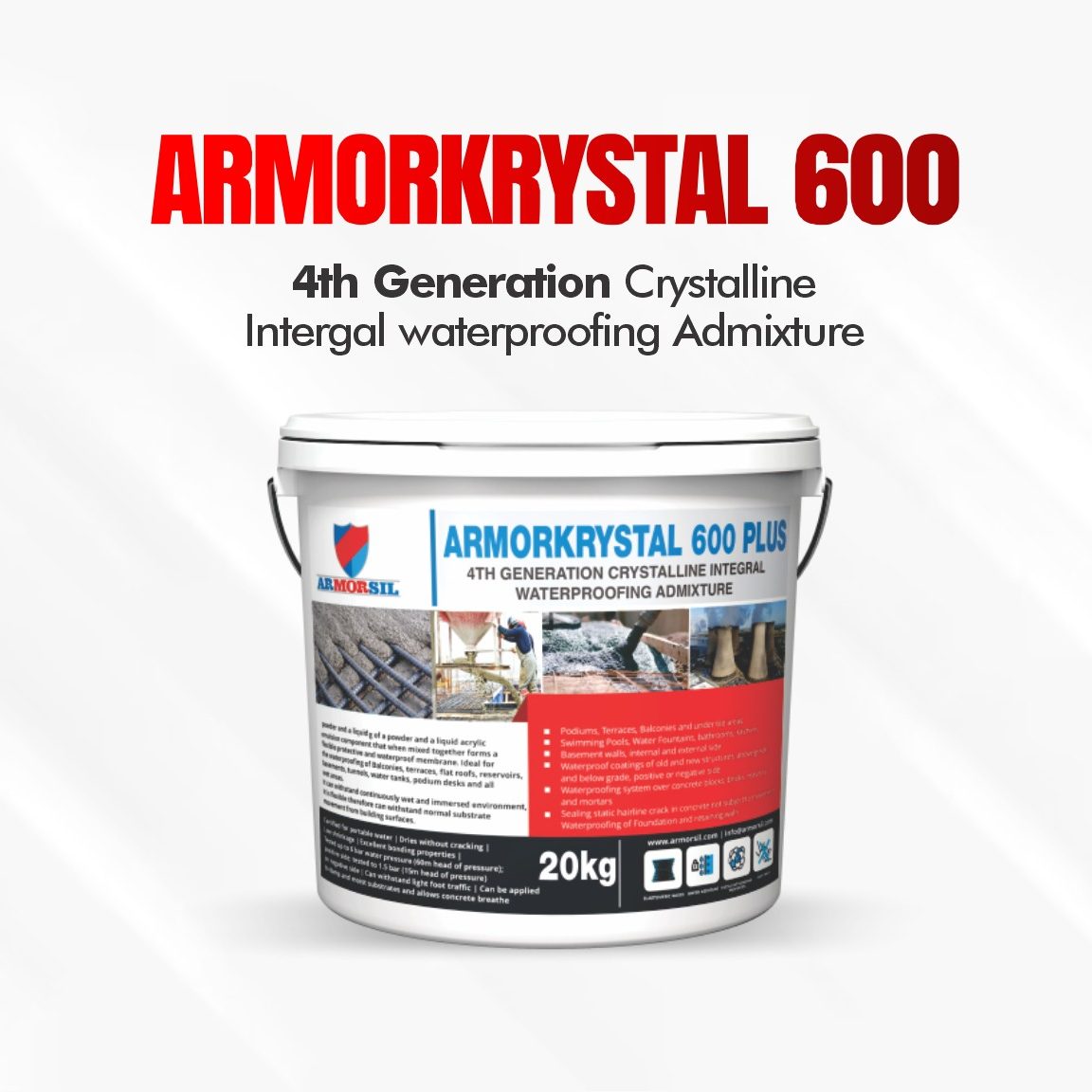

Armorkrystal 600 Plus
4TH GENERATION CRYSTALLINE INTEGRAL
WATERPROOFING ADMIXTURE
Product Description
ARMOKRYSTAL 600 PLUS – is a 4th generation powder crystalline Integral waterproofing admixture designed to resist hydrostatic pressure and for all concrete requiring primary waterproofing. The innovative crystalline technology within ARMORKRYSTAL
600 PLUS reacts with moisture silicate and free lime, a natural by-product of the cement hydration process. This 4th generation crystalline is not only hydrophilic but has
hydrophobic properties as well. The reaction creates millions of nano-crystal which grow throughout the concrete pores and capillary tract. Thus the concrete becomes permanently sealed against the penetration of water or liquids from any direction. The concrete is protected from deterioration due to harsh environmental conditions.
ARMORKRYSTAL 600 PLUS has been specifically formulated to meet the different
temperature and climate conditions.
Armorsil West Africa® is at the forefront of building science, with the best Crystalline Waterproofing in Nigeria, Crystalline Waterproofing in Lagos, and Crystalline Waterproofing in Abuja, such as Armorkrystal 400, Armorkrystal 500 and Armorkrystal 600 plus
- Extremely resistant to hydrostatic pressure
from both negative and positive side of the
slab - Increases freeze thaw resistance of the
concrete - Becomes an integral part of the concrete.
- Highly resistant to aggressive chemicals and
protect reinforcement against corrosion. - Non-toxic (NSF 61 certified for potable water
applications) - Negligible effect on slump, air entrainment,
plasticizers and water reducers. - Permeability tested as per ACE (Army corps of
Engineers) - Allows concrete to breathe and can seal
hairline crack up to 0.4mm
Dosage Rate: 0.8-1% by weight of cement.
Consult with ARMORSIL’s Technical Department
for assistance in verifying the appropriate
dosage rate and for further information
regarding enhanced chemical resistance and
optimum concrete performance for your project.
it should be added to the mixing water
Mixing: ARMORKRYSTAL 600 must be added to
the concrete at the time of batching.
0.5kg, 20 pieces in a pack.
12 months stored in a cool dry place.
ARMORKRYSYAL 600 can be used for the
structural waterproofing of all concrete
structures such as:
- Reservoirs
- Sewage and Water Treatment Plants
- Foundation and retaining Wall
- Underground Vaults
- Secondary Containment Structures
- Tunnels and Subway Systems
- Swimming Pool
- Concrete Slabs and Precast panels
Armorsil provides detailed method statements
on all its products for use in various applications.
Below is an information summary for guidance
The setting time of concrete is affected by the
chemical and physical composition of
ingredients, temperature of the concrete and
climatic conditions. ARMORKRYSTAL 600 PLUS
will have little or no effect on the set time.
However concrete with ARMORKRYSTAL 600
PLUS may deliver higher compressive strength
than normal concrete
Conforms to the requirements of BS EN 934-2
Table 9
Appearance: White
Like all material that contains Portland cement,
this material must be handled professionally as
it can cause irritation and burns. Therefore
contact with skin and eyes must be avoided.
